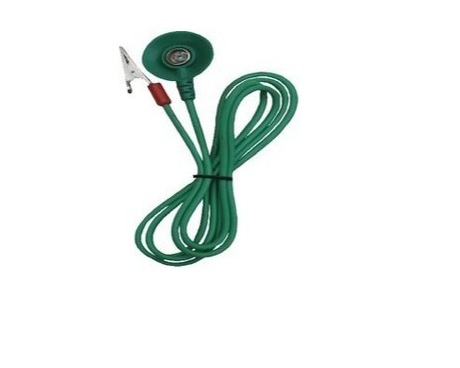

ESD Wristband C Clip


2 meter Long Adjustable Elastic Wrist Strap

Button to Button

Wrist Straps per ANSI/ESD S20.20 “All personnel shall be bonded or electrically connected to the grounding / equipotential bonding system when handling ESDS [ESD sensitive] items.” “When personnel are seated at ESD protective workstations, they shall be connected to the grounding/equipotential bonding system via a wrist strap system.

SPECIFICATION :
Strap Resistance                        :- 100Ώ Typical
In Line Resistance                     :- 1M Ώ ± 10%
Contact                                      :- 360º Around Wrist
Snap                                          :- 10mm

Electro dissipating Time            :- <0.1 Sec
Connection Type                        :- Button to Button / Button to C Clip
